Mapping the Shape of the Genomic World

Genomics isn’t only about reading the sequence of DNA. It’s also about understanding its structure. Every genome has a unique shape, formed by the arrangement of genes, repeats, and regions that fold, loop, and rearrange chromosomes. This architecture is what gives the sequence its biological meaning, and genome mapping is the tool that lets us visualize it.

Over time, genome mapping has evolved from early microscope-based observations to the high-resolution electronic detection of today. This post explores that journey—what genome mapping is, how it has evolved, and how modern tools like electronic genome mapping (EGM) are redefining our understanding of the genomic world.

What Is Genome Mapping?

Genome mapping creates a physical framework of the genome by measuring the distances between specific DNA landmarks. These landmarks might be genes, motifs, or enzymatically introduced label sites. The resulting map describes how those features are arranged along the chromosome, revealing the genome’s structure rather than its sequence.

Think of it this way—sequencing gives you the street names and house numbers, while mapping shows you how those streets connect into neighborhoods, cities, and regions. The two are complementary, and together they provide both fine-grained information and a broader architectural view of the genome.

A Brief History of Mapping Technologies

Early mapping methods were visual. Karyotyping, developed in the mid-20th century, made it possible to identify large chromosomal rearrangements by staining and examining chromosomes under a microscope. Later, techniques like restriction mapping and fluorescence in situ hybridization (FISH) refined this process, providing higher resolution and enabling researchers to pinpoint specific genomic regions.

As the field advanced, scientists sought ways to visualize DNA on even finer scales. Optical mapping emerged in the late 1990s, using fluorescent labels and microscopy to image long, stretched DNA molecules. These optical systems offered significant improvements in resolution and provided insights into megabase-scale structure.

However, optical methods also introduced new challenges. Imaging long DNA strands requires precise control of optical components and complex image processing. These dependencies can limit throughput, reproducibility, and long-term stability, creating hurdles for large-scale and clinical research settings.

From Optics to Electronics: A Novel Approach to DNA Mapping

The next leap in mapping came from rethinking how DNA could be detected. Instead of relying on fluorescence and imaging, EGM uses solid-state nanodetectors to measure the passage of DNA through nanochannels, replacing optics with electronics to achieve higher resolution and stability.

Here’s how it works: high molecular weight (HMW) DNA is enzymatically nicked at specific sequence motifs and tagged with an engineered molecule that can be detected electronically. Because the enzyme recognizes specific short motifs, the pattern of labels along each molecule serves as a unique molecular fingerprint. After tagging, the DNA is coated with a DNA-binding protein that enhances signal detection.

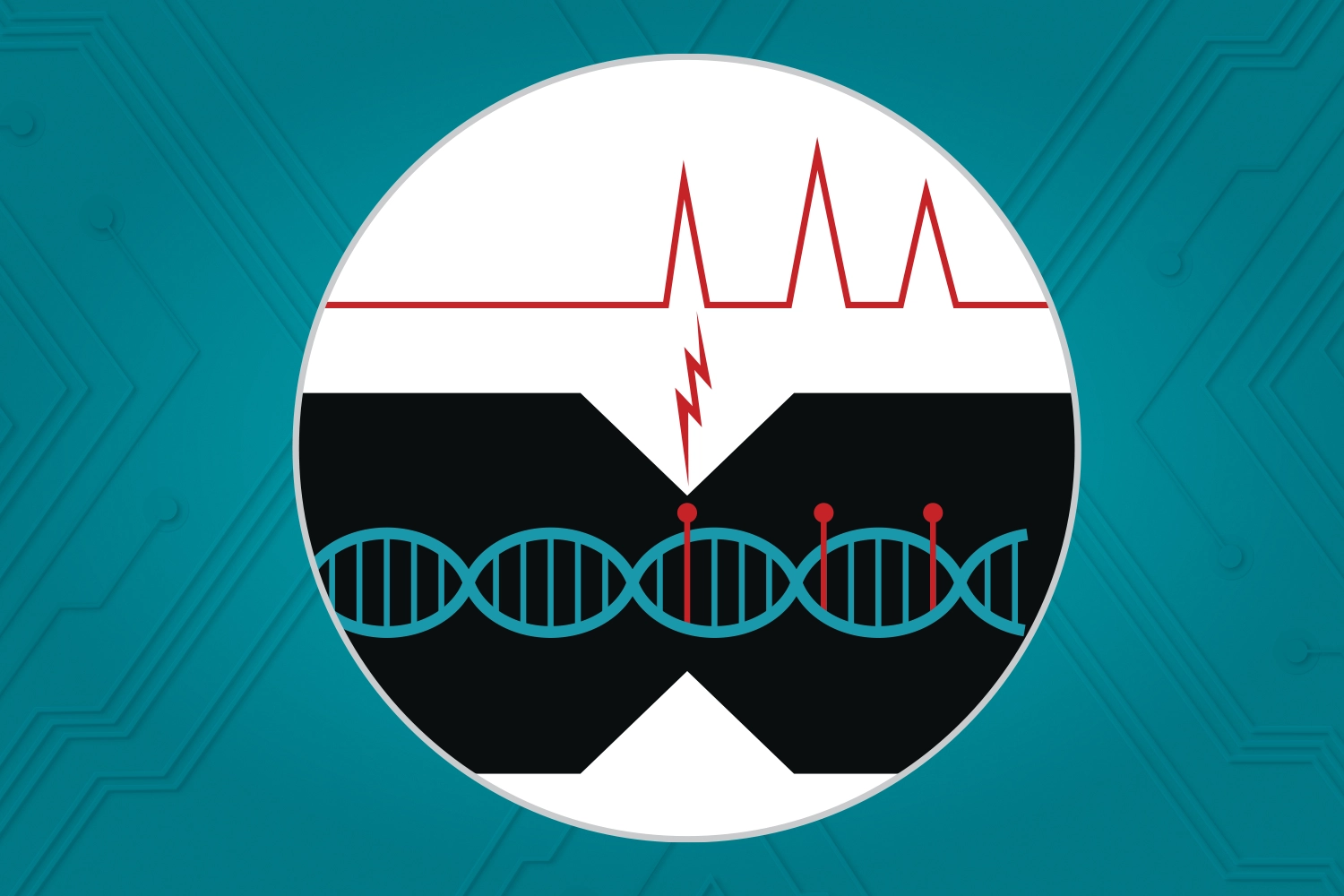

As these coated molecules move through the detector, they temporarily occupy space and displace ions in the nanochannel. This interaction produces a measurable change in the voltage across paired sensors, analogous to a current blockade event measured in nanopore sequencing methods. The coated HMW DNA itself alters the signal, and the presence of a tag produces an even greater shift, allowing the system to distinguish between labeled and unlabeled regions along the molecule.

Because each molecule physically occupies space within the nanochannel, its size and shape determine how much the electrical current is disrupted. Larger or more complex molecules create greater voltage changes, meaning EGM effectively translates molecular shape into a measurable signal.

Each paired sensor in the OhmX™ Detector monitors these voltage changes over time. The system converts the duration and magnitude of each event into physical distances between labels using advanced signal-processing algorithms to reconstruct high-density electronic maps of the genome.

At Nabsys, this approach was guided by first-principles thinking, beginning not with existing tools, but with the underlying physics of molecular detection. With that mindset, the team approached genome mapping from the ground up, asking how long DNA could be measured most directly and reliably without the constraints of optical systems. The answer was electronics—a direct, quantifiable way to measure molecular motion and structure.  By focusing on measurable signals rather than images, EGM emerged from foundational reasoning about what makes detection precise, scalable, and reproducible.

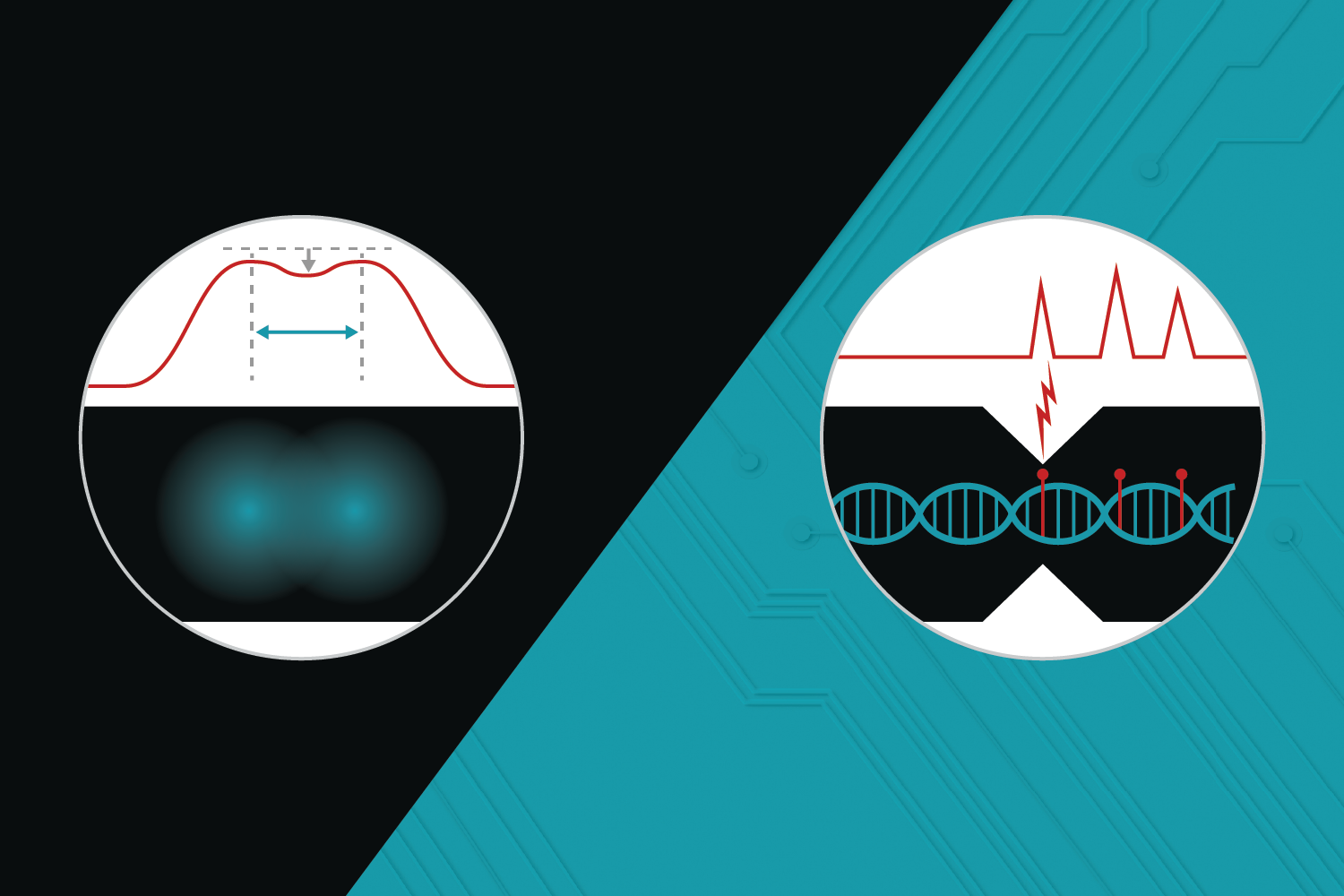

This electronic approach transcends the diffraction limit of light, enabling analysis of both large-scale chromosomal rearrangements and smaller structural variants (SVs) within a single assay. Check out the OhmX Platform page to learn more.

The Advantages of Electronic Detection

Replacing photons with electrons transforms genome mapping from an optical imaging challenge into a signal-processing problem—one that physics and engineering can solve elegantly.

• Resolution: Detects both balanced and unbalanced SVs as small as 300 bp
• Stability: Uses solid-state detectors to minimize the effects of vibration, alignment drift, and fluorescence variability
• Throughput: Collects data from hundreds of parallel nanochannels simultaneously
• Efficiency: Reduces complexity while maintaining genome-wide coverage via an amplification-free workflow and integrated analysis
• Affordability: Electronic nanodetection leverages lower-cost consumables than expensive optics and lasers used in other methods

By integrating high-sensitivity electronics, nanofluidics, and computational biology, EGM represents a complete re-engineering of how HMW DNA molecules are measured. Together, these advantages enable EGM to address questions across genomics that depend on accurate, large-scale SV detection.

Applications and Research Directions

EGM strengthens and refines many of the applications already central to modern genomics. By combining long-range context with high-resolution detection, EGM provides a reliable, scalable way to measure genomic structure in detail.

• SV analysis: Enables confident detection and verification of SVs, including balanced and unbalanced rearrangements, with precise breakpoint resolution
• Repeat expansion characterization: When paired with specialized pipelines like the RepX Analysis for Repeat Expansion Disorders pipeline, EGM can identify and size repeat expansions in genes like FMR1 and FXN, complementing sequencing-based approaches
• Cytogenetic studies: Provides a digital, high-throughput method for analyzing chromosomal integrity and structural rearrangements in research and translational contexts

Across these applications, EGM adds value by providing long-range, quantitative, and reproducible insights into genomic architecture—revealing patterns that other methods might miss.

Revealing the Shape of the Genomic World

Genome mapping has always been a way to understand how the pieces of the genome fit together, and it continues to reveal how structure shapes our understanding of the genome.

Even as sequencing continues to evolve, understanding structure remains fundamental. Many of the most meaningful genomic insights depend not only on reading bases, but on recognizing how their arrangement defines genomic architecture, enabling detection of SVs that influence function. By capturing how DNA is organized across vast genomic landscapes, mapping turns billions of bases into interpretable context—connecting sequence with structure and revealing the shape of the genomic world.

‍
